The Quad (MultiLink) top HAT board adds four repeater ports to the controller. Each is identical to the that on the main board, the codecs are set up in a daisy-chain so that only one set of digital signals enters or leaves the board.

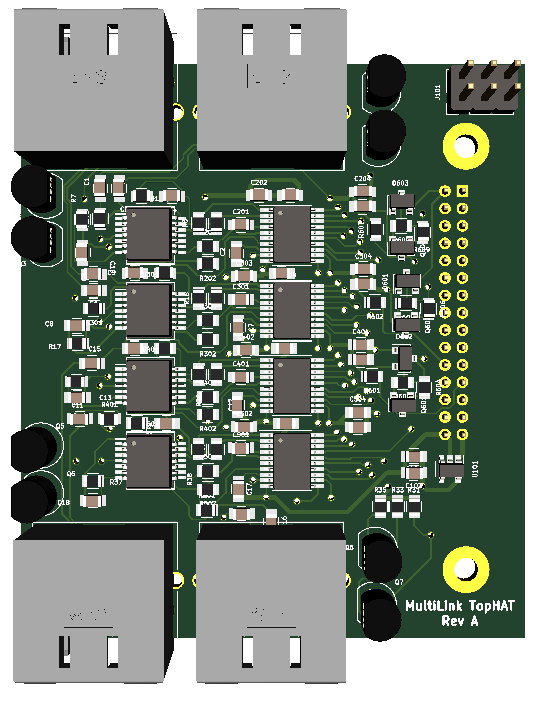

As with the single port adapter, the three sense inputs are also implemented. A 3D image of the board is show below.
